1D bratu equation from (Kan2022-ko)[@cite]

Necessary packages

using Ariadne, Krylov
using KrylovPreconditioners
using SparseArrays, LinearAlgebra
using CairoMakie

1D Bratu equations

\[y′′ + λ * exp(y) = 0\]

F(u) = 0

function bratu!(res, y, (Δx, λ))
    N = length(y)
    for i in 1:N
        y_l = i == 1 ? zero(eltype(y)) : y[i - 1]
        y_r = i == N ? zero(eltype(y)) : y[i + 1]
        y′′ = (y_r - 2y[i] + y_l) / Δx^2

        res[i] = y′′ + λ * exp(y[i]) # = 0
    end
    return nothing
end

function bratu(y, p)
    res = similar(y)
    bratu!(res, y, p)
    return res
end

bratu (generic function with 1 method)

Reference solution

function true_sol_bratu(x)
    # for λ = 3.51382, 2nd sol θ = 4.8057
    θ = 4.79173
    return -2 * log(cosh(θ * (x - 0.5) / 2) / (cosh(θ / 4)))
end

true_sol_bratu (generic function with 1 method)

Choice of parameters

const N = 10_000
const λ = 3.51382
const dx = 1 / (N + 1) # Grid-spacing

9.999000099990002e-5

Domain and Initial condition

x = LinRange(0.0 + dx, 1.0 - dx, N)
u₀ = sin.(x .* π)

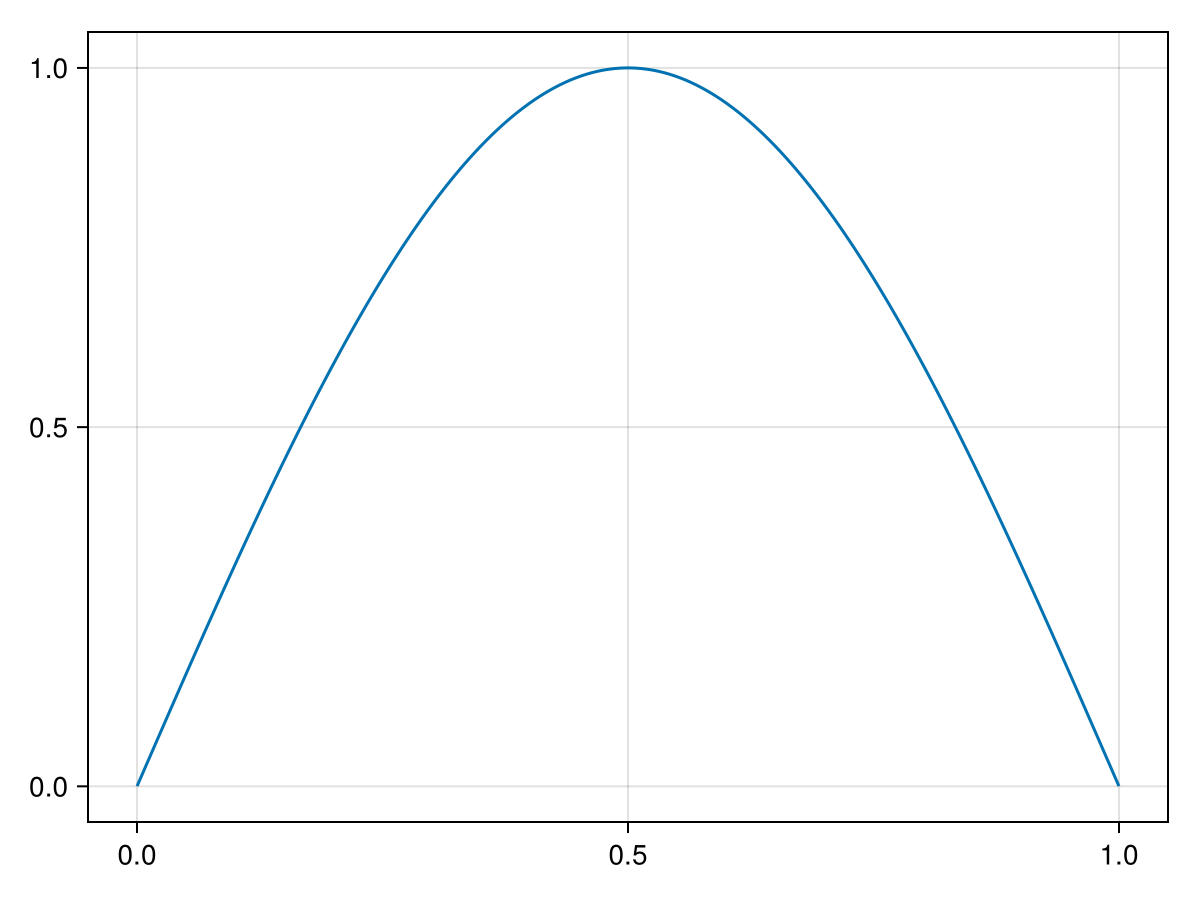

lines(x, u₀, label = "Initial guess")

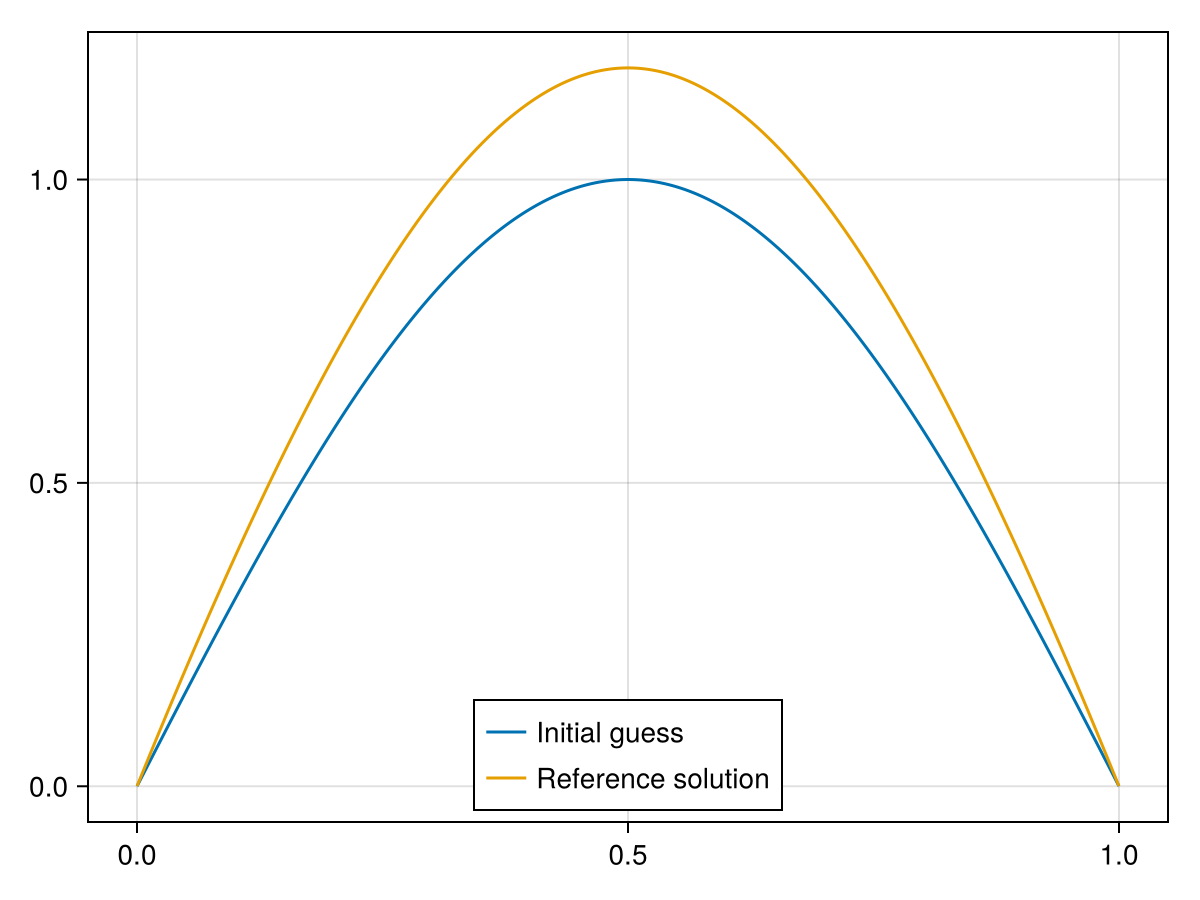

Reference solution evaluated over domain

reference = true_sol_bratu.(x)

fig, ax = lines(x, u₀, label = "Initial guess")
lines!(ax, x, reference, label = "Reference solution")
axislegend(ax, position = :cb)
fig

Solving using inplace variant and CG

uₖ, _ = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :cg,
)

ϵ = abs2.(uₖ .- reference)

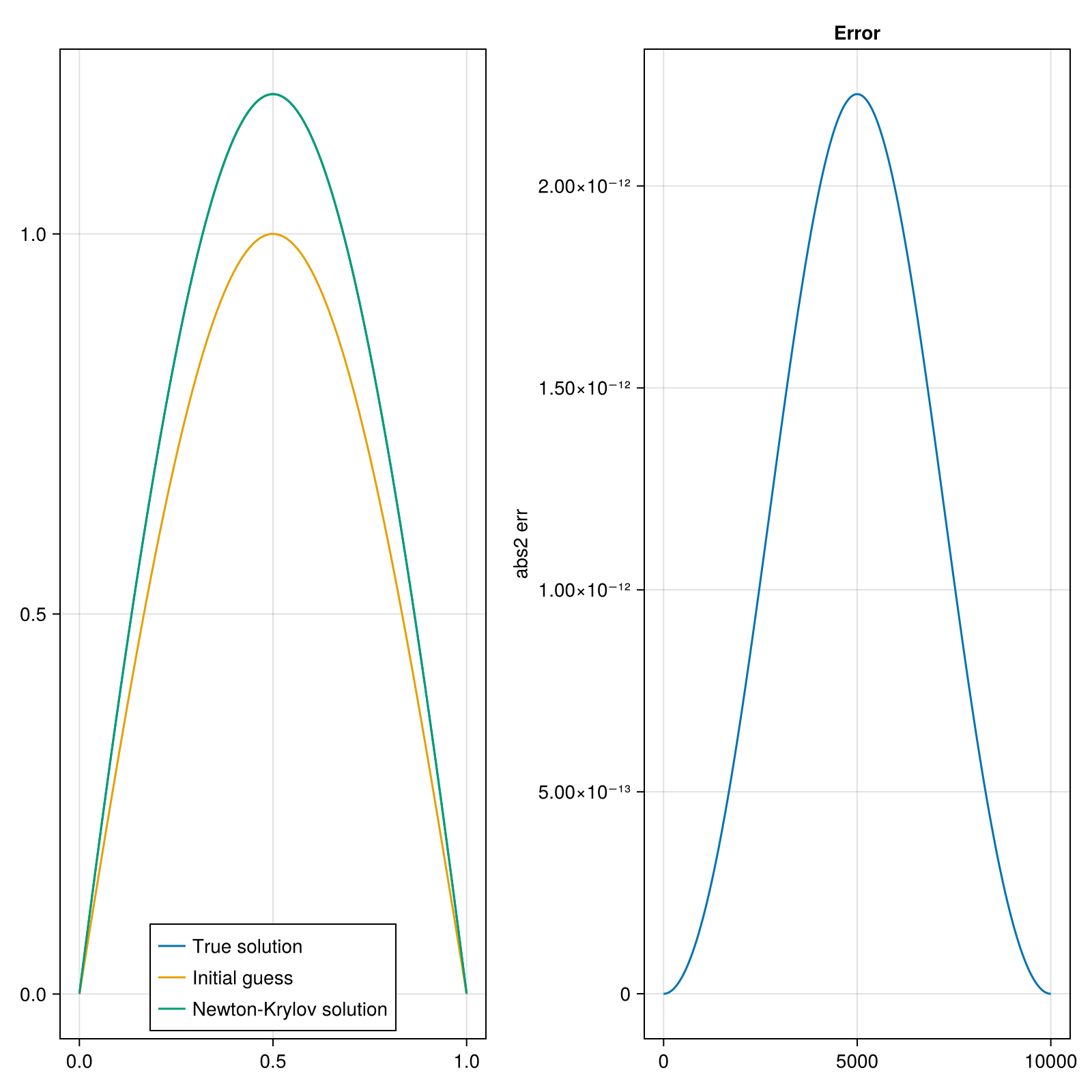

let
    fig = Figure(size = (800, 800))
    ax = Axis(fig[1, 1], title = "", ylabel = "", xlabel = "")

    lines!(ax, x, reference, label = "True solution")
    lines!(ax, x, u₀, label = "Initial guess")
    lines!(ax, x, uₖ, label = "Newton-Krylov solution")

    axislegend(ax, position = :cb)

    ax = Axis(fig[1, 2], title = "Error", ylabel = "abs2 err", xlabel = "")
    lines!(ax, abs2.(uₖ .- reference))

    fig
end

Solving using the out of place variant

_, stats = newton_krylov(
    bratu,
    copy(u₀), (dx, λ);
    algo = :cg
)
stats

(solved = true, stats = Ariadne.Stats(11, 60160, 6.086180541247742e-5), t = 10.637219492)

Solving with a fixed forcing

_, stats = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :cg,
    forcing = Ariadne.Fixed(0.1)
)
stats

(solved = true, stats = Ariadne.Stats(8, 56510, 2.773666992173675e-5), t = 5.30778097)

Solving with no forcing

_, stats = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :cg,
    forcing = nothing
)
stats

(solved = true, stats = Ariadne.Stats(8, 71652, 3.217114944736544e-6), t = 6.908842248)

Solve using GMRES – doesn't converge

_, stats = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :gmres,
)
stats

Solve using GMRES + ILU Preconditioner

_, stats = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :gmres,
    N = (J) -> ilu(collect(J)), # Assembles the full Jacobian
    krylov_kwargs = (; ldiv = true)
)
stats

(solved = true, stats = Ariadne.Stats(8, 8, 3.216849217028634e-6), t = 8.590577577)

Solve using FGMRES + ILU Preconditioner

_, stats = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :fgmres,
    N = (J) -> ilu(collect(J)), # Assembles the full Jacobian
    krylov_kwargs = (; ldiv = true)
)
stats

(solved = true, stats = Ariadne.Stats(8, 8, 3.2061685998371007e-6), t = 7.834229833)

Solve using FGMRES + GMRES Preconditioner

struct GmresPreconditioner{JOp}
    J::JOp
    itmax::Int
end

function LinearAlgebra.mul!(y, P::GmresPreconditioner, x)
    sol, _ = gmres(P.J, x; P.itmax)
    return copyto!(y, sol)
end

_, stats = newton_krylov!(
    bratu!,
    copy(u₀), (dx, λ), similar(u₀);
    algo = :fgmres,
    N = (J) -> GmresPreconditioner(J, 5),
)
stats

(solved = true, stats = Ariadne.Stats(12, 11973, 9.343815298545975e-5), t = 62.072032029)

Explodes..

newton_krylov!(
	bratu!,
	copy(u₀), (dx, λ), similar(u₀);
	algo = :cgls, # Cgne
  krylov_kwargs = (; verbose=1)
)

newton_krylov!(
	bratu!,
	copy(u₀), (dx, λ), similar(u₀);
	verbose = 1,
	algo = :bicgstab, # L=2
	η_max = nothing
)
