RKOpt.jl

The Julia package RKOpt.jl is work in progress. A mature version of much more functionality is available in the MATLAB-based package RK-Opt.

Example: Optimize a stability polynomial for imaginary axis inclusion

First, we optimize the stability polynomial for imaginary axis inclusion using optimize_stability_polynomial.

using RKOpt: optimize_stability_polynomial

spectrum = im * range(0.0, 1.0, length = 101)
accuracy_order = 1
number_of_stages = 7
dt, coefficients = optimize_stability_polynomial(accuracy_order, number_of_stages, spectrum)

(6.000807441747164, [1.0, 1.0, 0.4999491743285535, 0.17573080812607741, 0.037028744397675235, 0.008199242909439434, 0.0006855760826631846, 0.0001135938909262879])

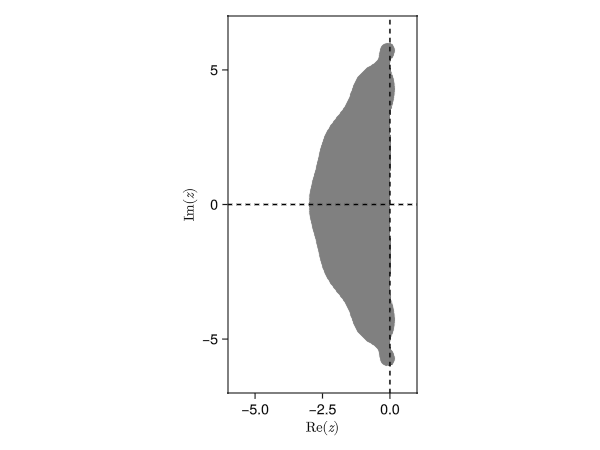

Next, we plot the corresponding stability region.

using GLMakie
using LaTeXStrings

n = 1000
x = range(-6, 1, length = n)
y = range(-7, 7, length = 2 * n)
z = @. x + im * y'
stab = map(z -> abs(evalpoly(z, coefficients)) <= 1, z)
fig = Figure()
ax = Axis(fig[1, 1]; aspect = DataAspect(),
          xlabel = L"\mathrm{Re}(z)", ylabel = L"\mathrm{Im}(z)")
heatmap!(ax, x, y, stab, colormap = :binary, colorrange = (0.0, 2.0))
lines!(ax, [extrema(x)...], [0, 0], color = :black, linestyle = :dash)
lines!(ax, [0, 0], [extrema(y)...], color = :black, linestyle = :dash)
fig
